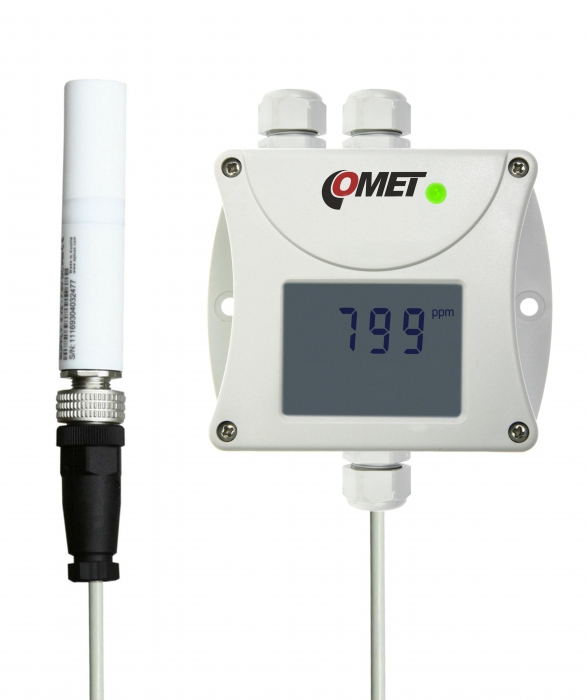

CO2 concentration transmitter with RS485 interface, external carbon dioxide probe, 1m cable

CO2 - carbon dioxide level sensor.

The device is supplied with CO2 probe with 1m cable. Cable lengths 2 or 4 meters available optionally.

Green LED shines - CO2 concentration 0 to 1000 ppm

Yellow LED shines - CO2 concentration 1001 to 1200 ppm

Red LED shines - CO2 concentration 1201 ppm and more



  • code
    T5441
  • Warranty
    3 years
  • In stock
    on request
  • 4 740.00 AED

Technical data

Measured value

CO2

CO2 SENSOR

Measuring range 0 to 10 000 ppm
Accuracy ±(100ppm +5% from reading) at 25°C and 1013hPa
Resolution 1 ppm

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x external CO2 sensor
Output RS485
Communication protocol ModBus RTU, ARION, Advantech ADAM
Power 9-30 Vdc
Protection class IP65
Dimensions 88,5 x 94 x 39,5 mm
External probe cable length CO2 1 meter (optionally 2 or 4 meters)
Weight approx. 250 g
Warranty 3 years
