Digital temperature/humidity probe DIGIS/M, MiniDin connector

Digital probe with connector MiniDIN, for direct insertion.

The probe is supplied with a calibration certificate.
The probe is interchangeable without calibration to a specific device and regardless of the length of the cable.

Optionally also available with cable of various lengths. For other cable lengths use the selector.

  • code
    DIGIS/M
  • 490.00 AED

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -10 to +60 °C
Accuracy ±0.4 °C
Response time t90 < 15 min, temperature step 20 °C, air flow 1 m/s

HUMIDITY SENSOR

Measuring range 0 to 100 % RV
Accuracy ±1.8 %RV in the range of 0 to 90 % RH at 23 °C
Response time t90 < 9 s (humidity step 60 %RH, constant temperature)
Hysteresis ±1 % RV
Linearity ±1 % RV

DEW POINT

Measuring range -60 to +60 °C
Accuracy see the manual

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C
Protection class IP30
Connector MiniDin

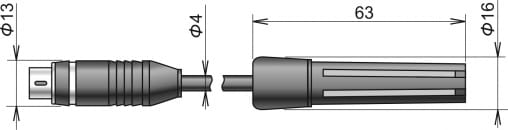

Dimensions 63 x 16 mm
Weight cca 10 g
Warranty 3 years
