Temperature probe Pt1000TG7/C, CINCH connector, cable 5 meters

Temperature probe Pt1000TG7/C, CINCH connector, cable 5 meters
Temperature probe Pt1000TG7/C, CINCH connector, cable 5 meters
Temperature probe Pt1000TG7/C, CINCH connector, cable 5 meters
Temperature probe Pt1000TG7/C, CINCH connector, cable 5 meters
Temperature probe Pt1000TG7/C, CINCH connector, cable 5 meters
Temperature probe Pt1000TG7/C, CINCH connector, cable 5 meters

Temperature probes Pt1000TG7 are designed to measure the surface temperature of solid substances.

The maximum temperature range of use of the sensors is -50 to +200 °C and these limits must not be exceeded even for a brief period.
Used type of lead-in cable has silicone insulation and shielding. The structure of the sensors enables fast response to changes in temperature. The sensors are mounted to the surface using one or two M4 screws.

The sensors are designed for use in a chemically non-aggressive environment. The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable.

  • code
    SN166C
  • On request
Add to quote

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -50 to +200 °C
Accuracy ± (0.15 + 0.002 t) at °C
Accuracy class A
Time response t0.5 <10 s (on flat surface of Al prism without paste)
Type of sensing element Pt1000
Temperature coefficient 3850 ppm / °C

GENERAL TECHNICAL DATA

Wire connection 2-wire connection
Material of the case brass

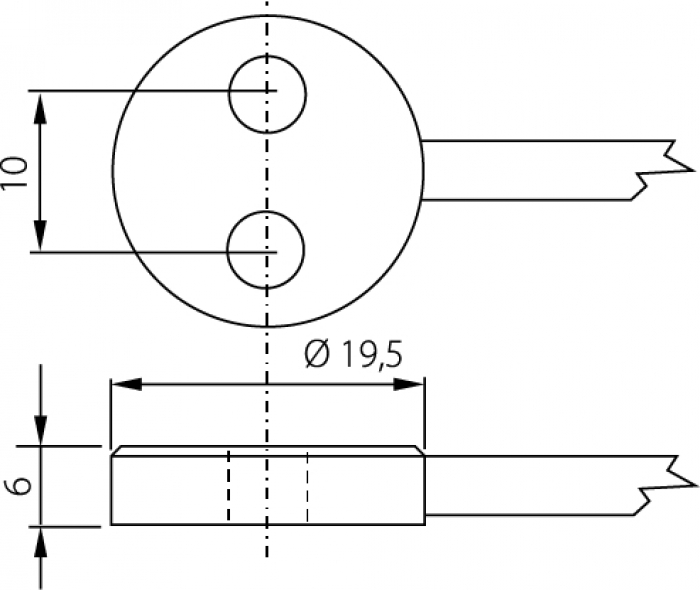

Dimensions of the case height 6 ± 0.1 mm;
diameter 19.5 ± 0.1 mm;
mounting holes diameter 4.3 ± 0.05 mm
Lead-in cable silicone shielded
Length of lead-in cable 5 meters
Connector CINCH
IP protection IP65
Warranty 30 months
