Thermo-hygro-barometer with external probe, cable 2 meters

Thermometer, hygrometer, barometer is designed for measurement and datalogging of temperature, relative humidity and atmospheric pressure into the internal non-volatile memory.

Also barometric pressure tendency reading available. Free PC program enables to transfer recorded data to the computer for evaluation.

Audio and optical alarm of measured values.
Memory of minimum and maximum measured values.
Function Hold - manual storing of actual values for later displaying.

Data logger is connected to the PC through included USB cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.

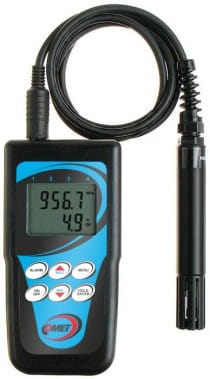

Thermometer - hygrometer - barometer with external air temperature-humidity probe on a 2 meters cable. Probe diameter is 18mm, length 135mm. Built-in indoor temperature and air pressure sensors.



  • code
    D4141-2
  • Warranty
    3 years
  • 2 410.00 AED

Technical data

Measured value

Temperature
Relative humidity
Atmospheric pressure

TEMPERATURE SENSOR

Measuring range -10 to +60 °C (internal); -30 to +105 °C (external)
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

ATMOSPHERIC PRESSURE SENSOR

Measuring range 800 to 1100 hPa
Accuracy ±2hPa at 23°C
Resolution 0.1 hPa

GENERAL TECHNICAL DATA

Operating temperature electronics -10 to +60 °C, external probe -30 to +105 °C
Channels internal sensor of temperature and atmospheric pressure, 1x connectable temperature+humidity probe
Acoustic signalization + backlit LCD YES
Memory 16,000 values (non-cyclic record)
Recording interval adjustable from 10 s to 24 h
Measuring interval and display reading refresh 0.7 to 5 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life approx. 6 months
Protection class IP20
Dimensions (without connectors) 191 x 71 x 27 mm; length/diameter of external probe 135/18 mm
External probe cable length 2 meters
Weight (including batteries) approx. 155 g
Warranty 3 years

Optional accessories and download

ac/dc adapter 230Vac to 12Vdc/1A, EU

ac/dc adapter 230Vac to 12Vdc/1A, EU

code A1515eu
Price 120.00 AED
In stock 123 pcs
ac/dc adapter 230Vac to 12Vdc/1A, UK

ac/dc adapter 230Vac to 12Vdc/1A, UK

code A1515uk
Price 120.00 AED
In stock 12 pcs
ac/dc adapter 230Vac to 12Vdc/1A, US

ac/dc adapter 230Vac to 12Vdc/1A, US

code A1515us
Price 120.00 AED
In stock 11 pcs
NiMH rechargeable batt. 9V/200mAh

NiMH rechargeable batt. 9V/200mAh

code A3400
Price 120.00 AED
In stock on request

Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003
Price 370.00 AED
In stock on request
Accredited atmospheric pressure calibration

Accredited atmospheric pressure calibration

code SLU006
Price 370.00 AED
In stock on request

Transducer USB/RS232 complete

Transducer USB/RS232 complete

code MP006
Price 230.00 AED
In stock 8 pcs
Mini USB cable, 2 meters

Mini USB cable, 2 meters

code MP038
Price On request
In stock on request
Communication cable for COMMETER Dxxxx

Communication cable for COMMETER Dxxxx

code QLOG015
Price 80.00 AED
In stock 11 pcs

Mini USB cable, 2 meters

Mini USB cable, 2 meters

code MP038
Price On request
In stock on request

plastic sensor protection with stainless filter (black)

plastic sensor protection with stainless filter (black)

code F5200B
Price 120.00 AED
In stock on request
PTFE sensor protection, white

PTFE sensor protection, white

code F5300
Price 260.00 AED
In stock on request

Humidity Standard 10%RH, set 5pcs

Humidity Standard 10%RH, set 5pcs

code HM023
Price 450.00 AED
In stock 18 pcs
Humidity Standard 80%RH, set 5pcs

Humidity Standard 80%RH, set 5pcs

code HM024
Price 450.00 AED
In stock 16 pcs
Vessel for adjustment and calibration of humidity

Vessel for adjustment and calibration of humidity

code MD046
Price 300.00 AED
In stock 10 pcs
PP4 Flat circular flange

PP4 Flat circular flange

code PP4
Price 80.00 AED
In stock 99 pcs
PP90 Right-angled stainless steel flange

PP90 Right-angled stainless steel flange

code PP90
Price 80.00 AED
In stock 36 pcs
