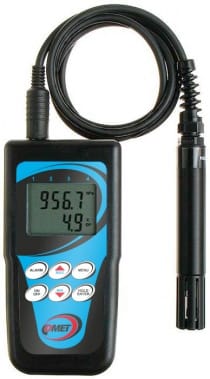

Thermo-hygro-barometer with external probe

Thermometer, hygrometer, barometer is designed for measurement and datalogging of temperature, relative humidity and atmospheric pressure into the internal non-volatile memory.

Also barometric pressure tendency reading available. Free PC program enables to transfer recorded data to the computer for evaluation.

Audio and optical alarm of measured values.
Memory of minimum and maximum measured values.
Function Hold - manual storing of actual values for later displaying.

Data logger is connected to the PC through included USB cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.

Thermometer - hygrometer - barometer with external air temperature-humidity probe on a 1 meter cable. Probe diameter is 18mm, length 135mm. Built-in indoor temperature and air pressure sensors.



  • code
    D4141
  • Warranty
    3 years
  • 2 300.00 AED

Technical data

Measured value

Temperature
Relative humidity
Atmospheric pressure

TEMPERATURE SENSOR

Measuring range -10 to +60 °C (internal); -30 to +105 °C (external)
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

ATMOSPHERIC PRESSURE SENSOR

Measuring range 800 to 1100 hPa
Accuracy ±2hPa at 23°C
Resolution 0.1 hPa

GENERAL TECHNICAL DATA

Operating temperature electronics -10 to +60 °C, external probe -30 to +105 °C
Channels internal sensor of temperature and atmospheric pressure, 1x connectable temperature+humidity probe
Acoustic signalization + backlit LCD YES
Memory 16,000 values (non-cyclic record)
Recording interval adjustable from 10 s to 24 h
Measuring interval and display reading refresh 0.7 to 5 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life approx. 6 months
Protection class IP20
Dimensions (without connectors) 191 x 71 x 27 mm; length/diameter of external probe 135/18 mm
External probe cable length 1 meter
Weight (including batteries) approx. 155 g
Warranty 3 years

Optional accessories and download

ac/dc adapter 230Vac to 12Vdc/1A, EU

ac/dc adapter 230Vac to 12Vdc/1A, EU

code A1515eu
Price 120.00 AED
In stock 133 pcs
ac/dc adapter 230Vac to 12Vdc/1A, UK

ac/dc adapter 230Vac to 12Vdc/1A, UK

code A1515uk
Price 120.00 AED
In stock 4 pcs
ac/dc adapter 230Vac to 12Vdc/1A, US

ac/dc adapter 230Vac to 12Vdc/1A, US

code A1515us
Price 120.00 AED
In stock 10 pcs
NiMH rechargeable batt. 9V/200mAh

NiMH rechargeable batt. 9V/200mAh

code A3400
Price 120.00 AED
In stock on request

Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003
Price 370.00 AED
In stock on request
Accredited atmospheric pressure calibration

Accredited atmospheric pressure calibration

code SLU006
Price 370.00 AED
In stock on request

Transducer USB/RS232 complete

Transducer USB/RS232 complete

code MP006
Price 230.00 AED
In stock 8 pcs
Mini USB cable, 2 meters

Mini USB cable, 2 meters

code MP038
Price On request
In stock on request

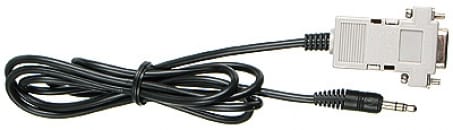

Communication cable for COMMETER Dxxxx
