Digital temperature/humidity probe DIGIL/E, ELKA connector

Digital probe with connector ELKA, direct insertion.

Stainless steel mesh filter.

The probe is supplied with a calibration certificate.
The probe is interchangeable without calibration to a specific device and regardless of the length of the cable.

Optionally also available with cable of various lengths. Other cable lengths you can find in optional accessories.

  • code
    DIGIL/E
  • In stock
    47 pcs
  • 600.00 AED

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -20 to +80 °C
Accuracy ±0.4 °C
Response time t90 < 15 min, temperature step 20 °C, air flow 1 m/s

HUMIDITY SENSOR

Measuring range 0 to 100 % RV
Accuracy ±1.8 %RV in the range of 0 to 90 % RH at 23 °C
Response time t90 < 9 s (humidity step 60 %RH, constant temperature)
Hysteresis ±1 % RV
Linearity ±1 % RV

DEW POINT

Measuring range -60 to +80 °C
Accuracy see the manual

GENERAL TECHNICAL DATA

Operating temperature -20 to +80 °C
Protection class IP40
Connector ELKA
Dimensions 66 x 18 mm
Weight cca 10 g
Warranty 3 years

Optional accessories and download

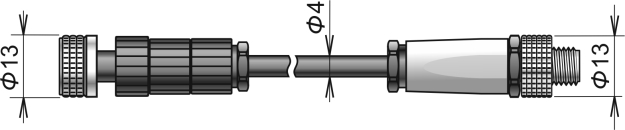

Extension cable for DIGIS and DIGIL probes, ELKA connector, cable 1 meter

Extension cable for DIGIS and DIGIL probes, ELKA connector, cable 1 meter

code SDP001-1
Price 230.00 AED
In stock on request
Extension cable for DIGIS and DIGIL probes, ELKA connector, cable 10 meters

Extension cable for DIGIS and DIGIL probes, ELKA connector, cable 10 meters

code SDP001-10
Price 300.00 AED
In stock on request
Extension cable for DIGIS and DIGIL probes, ELKA connector, cable 15 meters

Extension cable for DIGIS and DIGIL probes, ELKA connector, cable 15 meters

code SDP001-15
Price 370.00 AED
In stock on request
Extension cable for DIGIS and DIGIL probes, ELKA connector, cable 2 meters

Extension cable for DIGIS and DIGIL probes, ELKA connector, cable 2 meters

code SDP001-2
Price 230.00 AED
In stock on request
Extension cable for DIGIS and DIGIL probes, ELKA connector, cable 5 meters

Extension cable for DIGIS and DIGIL probes, ELKA connector, cable 5 meters

code SDP001-5
Price 260.00 AED
In stock 1 pcs

sintered bronze sensor protection

sintered bronze sensor protection

code F0000
Price 150.00 AED
In stock on request
plastic sensor protection with stainless filter (gray)

plastic sensor protection with stainless filter (gray)

code F5200
Price 120.00 AED
In stock on request
PTFE sensor protection, white

PTFE sensor protection, white

code F5300
Price 260.00 AED
In stock on request

Manuals

download-icon Instruction Manual
202.50 KB
download-icon Declaration of Conformity
63.65 KB
