WiFi temperature and relative humidity sensor for two external probes

Sensors with WiFi interface are designed to measure the temperature and relative humidity with a two connected probes (optional accessories).

Communication with the sensor is done via a wireless WiFi network. The device allows sending measured values ​​to the online
COMET Cloud (with the shortest interval of 5 minutes) or into COMET Database. The values ​​can be displayed on integrated web pages and provided to third party systems using the Modbus TCP, SNMP, JSON and XML. The measured values ​​are displayed on the LCD display.

The device continuously evaluates the alarm limits of the measured values ​​and in case of exceeding them, it can send an e-mail or inform by means of acoustic or optical signaling. Two alarm limits are supported for each measurement channel.

The main advantage of sensors with WiFi interface is the simplicity of deployment in places where WiFi infrastructure is already available. Just place the sensor in the desired location and connect it to the WiFi network. WiFi sensor in conjunction with
COMET Cloud offers a comprehensive solution for monitoring and alarm without the need for a server solution on the part of the user. If necessary, however, the sensor can also be connected to third-party systems, either using the Modbus TCP protocol, SNMP protocol or by sending JSON data to an http server. Sensor allow to provide values via XML and JSON using HTTP GET requests as well.

Thanks to these unique features, the WiFi sensor will find applications and a wide range of application areas.

  • code
    W3721
  • Warranty
    3 years
  • 1 780.00 AED

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range according to the connected probe Digi/E
Accuracy according to the connected probe Digi/E
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range according to the connected probe Digi/E
Accuracy according to the connected probe Digi/E
Resolution 0.1% RH

DEW POINT

Measuring range according to the connected probe Digi/E
Accuracy according to the connected probe Digi/E
Resolution according to the connected probe Digi/E

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels 2x connectable temperature+humidity probe, ELKA connector
Measuring interval 1 s
Sending interval to COMET Cloud adjustable 5 minutes to 12 hours
Communication protocols HTTP(S), SMTP, ModbusTCP, SNMP (v1, v2c, v3), HTTP POST, HTTP GET (JSON, XML)
Alarm signalization e-mail, acoustic, LED
Power 5.0 to 5.4 VDC; consumption 150 mA (max. 500 mA); USB-C connector
Radio section frequency: 2.4 GHz; max. transmit power: 18 dBm; standard: IEEE 802.11 b/g/n
WiFi security Open, WEP, WPA, WPA2, WPA2-PMF, WPA3, WPA2-EAP
Protection class IP30
Dimensions 81 x 93 x 32 mm
Weight 115 g
Warranty 3 years

Optional accessories and download

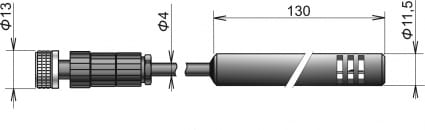

Ultra thin digital temperature/humidity probe

Ultra thin digital temperature/humidity probe

Temperature range: -10 to 60°C
code DIGIH/E-1
Price 670.00 AED
In stock 4 pcs
Ultra thin digital temperature/humidity probe, cable 2 m

Ultra thin digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C
code DIGIH/E-2
Price 710.00 AED
In stock 4 pcs
Ultra thin digital temperature/humidity probe, cable 5 m

Ultra thin digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C
code DIGIH/E-5
Price 780.00 AED
In stock 4 pcs

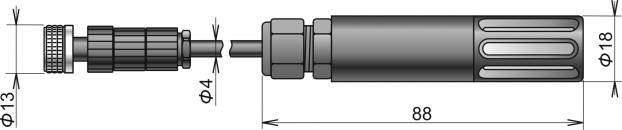

Digital temperature/humidity probe DIGIL/E-1, ELKA connector, cable 1 meter

Digital temperature/humidity probe DIGIL/E-1, ELKA connector, cable 1 meter

Temperature range: -30 to 105°C
code DIGIL/E-1
Price 630.00 AED
In stock 13 pcs
Digital temperature/humidity probe DIGIL/E-10, ELKA connector, cable 10 meters

Digital temperature/humidity probe DIGIL/E-10, ELKA connector, cable 10 meters

Temperature range: -30 to 105°C
code DIGIL/E-10
Price 890.00 AED
In stock 3 pcs
Digital temperature/humidity probe DIGIL/E-15, ELKA connector, cable 15 meters

Digital temperature/humidity probe DIGIL/E-15, ELKA connector, cable 15 meters

Temperature range: -30 to 105°C
code DIGIL/E-15
Price 1 000.00 AED
In stock 2 pcs
Digital temperature/humidity probe DIGIL/E-2, ELKA connector, cable 2 meters

Digital temperature/humidity probe DIGIL/E-2, ELKA connector, cable 2 meters

Temperature range: -30 to 105°C
code DIGIL/E-2
Price 670.00 AED
In stock 5 pcs
Digital temperature/humidity probe DIGIL/E-5, ELKA connector, cable 5 meters

Digital temperature/humidity probe DIGIL/E-5, ELKA connector, cable 5 meters

Temperature range: -30 to 105°C
code DIGIL/E-5
Price 740.00 AED
In stock 3 pcs

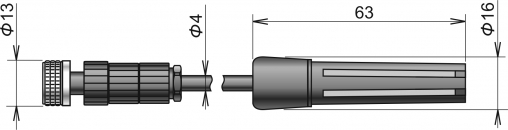

Digital temperature/humidity probe DIGIS/E, ELKA connector

Digital temperature/humidity probe DIGIS/E, ELKA connector

Temperature range: -20 to 80°C
code DIGIS/E
Price 520.00 AED
In stock 66 pcs
Digital temperature/humidity probe DIGIS/E-1, ELKA connector, cable 1 meter

Digital temperature/humidity probe DIGIS/E-1, ELKA connector, cable 1 meter

Temperature range: -10 to 60°C
code DIGIS/E-1
Price 560.00 AED
In stock 5 pcs
Digital temperature/humidity probe DIGIS/E-10, ELKA connector, cable 10 meters

Digital temperature/humidity probe DIGIS/E-10, ELKA connector, cable 10 meters

Temperature range: -10 to 60°C
code DIGIS/E-10
Price 780.00 AED
In stock 2 pcs
Digital temperature/humidity probe DIGIS/E-15, ELKA connector, cable 15 meters

Digital temperature/humidity probe DIGIS/E-15, ELKA connector, cable 15 meters

Temperature range: -10 to 60°C
code DIGIS/E-15
Price 930.00 AED
In stock on request
Digital temperature/humidity probe DIGIS/E-2, ELKA connector, cable 2 meters

Digital temperature/humidity probe DIGIS/E-2, ELKA connector, cable 2 meters

Temperature range: -10 to 60°C
code DIGIS/E-2
Price 560.00 AED
In stock 8 pcs
Digital temperature/humidity probe DIGIS/E-5, ELKA connector, cable 5 meters

Digital temperature/humidity probe DIGIS/E-5, ELKA connector, cable 5 meters

Temperature range: -10 to 60°C
code DIGIS/E-5
Price 670.00 AED
In stock on request

Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003
Price 370.00 AED
In stock on request

USB-C cable, 1 meter

USB-C cable, 1 meter

code MP053
Price 120.00 AED
In stock on request

Wall holder for datalogger

Wall holder for datalogger

code LP100
Price 150.00 AED
In stock 17 pcs
Holder for mounting the Datalogger "U" on magnetic surfaces

Holder for mounting the Datalogger "U" on magnetic surfaces

code LP102
Price 80.00 AED
In stock 18 pcs

COMET Cloud

COMET Cloud

code cloud
Price On request
In stock yes
COMET Cloud Lite for Android & iOS

COMET Cloud Lite for Android & iOS

code cloud_app
Price On request
In stock yes
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Price 490.00 AED
In stock yes

Software

download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
3.55 MB
download-icon Quick Start Manual
1.40 MB
download-icon Safety Information
274.30 KB
download-icon Calibration manual
457.30 KB
download-icon Declaration of Conformity
59.42 KB
download-icon MIB
577.77 KB

Firmware and SDK

download-icon Firmware version 10-0-6-0 (2022-04-25)
2.12 MB
download-icon Software development kit (SDK)
22.49 KB

Catalogs

download-icon CATALOG - WiFi Sensors
3.55 MB
download-icon Catalogue Sheets - COMET WiFi Sensors
1.48 MB
