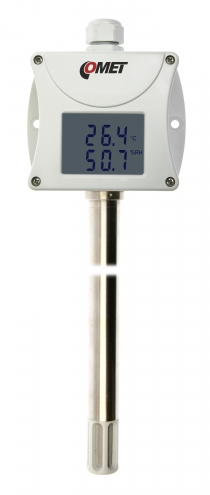

Temperature and humidity bar type probe with 4-20mA output
Humidity, temperature transmitter. Outdoor, indoor use. Bar type.
Relative humidity, temperature sensors at 700mm stem. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.
-
codeT3117
-
Warranty3 years
- On request
Technical data
Measured value
Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range
-30 to +125 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
internal temperature and humidity sensor
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output
4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation
all temperature range
Configuration of output
user adjustable from PC; measured range + value
Power
9-30 Vdc
Protection class
IP65 electronics; IP40 sensors
Dimensions
88,5 x 94 x 39,5 mm; stem length 700 mm
Weight
approx. 580 g
Warranty
3 years
Optional accessories and download
Accredited temperature and relative humidity calibration
code
SLU003
Price
On request
In stock
on request
cable for transmitter adjustment via USB port
code
SP003
Price
On request
In stock
32 pcs
sintered bronze sensor protection
code
F0000
Price
On request
In stock
on request
plastic sensor protection with stainless filter (gray)
code
F5200
Price
On request
In stock
on request
PTFE sensor protection, white
code
F5300
Price
On request
In stock
on request
Humidity Standard 10%RH, set 5pcs
code
HM023
Price
On request
In stock
18 pcs
Humidity Standard 80%RH, set 5pcs
code
HM024
Price
On request
In stock
20 pcs
Female connector ELKA 4012PG7 for TxxxxL
code
K1427
Price
On request
In stock
on request
Vessel for adjustment and calibration of humidity
code
MD046
Price
On request
In stock
44 pcs
PP4 Flat circular flange
code
PP4
Price
On request
In stock
26 pcs
PP90 Right-angled stainless steel flange
code
PP90
Price
On request
In stock
22 pcs
plastic gland for direct mounting of the humidity probe
code
SP004
Price
On request
In stock
4 pcs
Tool for easy connection to WAGO terminals 236 for analog output transmitters
code
SP005
Price
On request
In stock
36 pcs
Transmitter version with watertight male connector
code
TxxxxL
Price
On request
In stock
on request
Software
Comet Database One Click Installer (21.1-V)
Conversions - application for recalculation of values
Others
3D model T3117
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Catalogs
CATALOG - Analog Sensors with 0-10 V or 4-20 mA output
Catalogue Sheets - COMET Transmitters
