IoT Wireless CO2 datalogger with built-in sensor, 4G modem and Flat Rate SIM Card

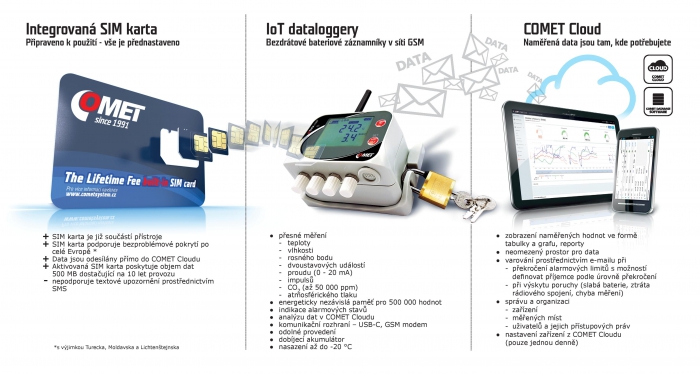

IoT Wireless Datalogger kit with built-in GSM modem and Flat Rate SIM Card allows the instant connection to the COMET Cloud.

IoT Datalogger is designed to record CO2 from built-in sensor. In case of exceeded set limits e-mail is sent from the COMET Cloud.

Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.

GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

  • code
    U8410Gsim
  • Warranty
    3 years
  • In stock
    on request
  • 4 440.00 AED

Technical data

Measured value

CO2

CO2 SENSOR

Measuring range 0 to 5000 ppm
Accuracy ±(50 ppm +3% from reading)
Measurement interval 15 s with external power supply, 2 min on battery power

GSM MODEM PARAMETERS

LTE Cat 1 LTE FDD/GSM/GPRS/EDGE
Supported network types GSM/GPRS/EDGE 900/1800 MHz
LTE FDD B1/B3/B5/B7/B8/B20

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels internal CO2 sensor
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval to the internal memory adjustable from 1 second to 24 hours
Recording interval to the COMET Cloud from 5 minutes
Interval for measuring and evaluating alarms adjustable 1 s, 10 s, 1 min
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power rechargeable Li-Ion battery A8200, 3.6V/5200mAh
Protection class IP20
Dimensions 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
Weight (including batteries) approx. 250 g
Warranty 3 years

Optional accessories and download

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

code A1879eu
Price 120.00 AED
In stock 44 pcs
AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

code A1879uk
Price 120.00 AED
In stock on request
AC/DC adapter 230Vac to 5Vdc/2.1 A, US

AC/DC adapter 230Vac to 5Vdc/2.1 A, US

code A1879us
Price 120.00 AED
In stock on request
Accupack A8205 for dataloggers "U"

Accupack A8205 for dataloggers "U"

code A8205
Price 340.00 AED
In stock on request

USB-C cable, 1 meter

USB-C cable, 1 meter

code MP053
Price 120.00 AED
In stock on request

Wall holder for datalogger

Wall holder for datalogger

code LP100
Price 150.00 AED
In stock 151 pcs
Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

code LP103
Price 80.00 AED
In stock 5 pcs

COMET Database

COMET Database

code CDB
Price 2 780.00 AED
In stock yes
COMET Cloud

COMET Cloud

code cloud
Price On request
In stock yes
COMET Cloud Lite for Android & iOS

COMET Cloud Lite for Android & iOS

code cloud_app
Price On request
In stock yes
COMET VISION - Analytical Software for Dataloggers and Multiloggers

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV
Price FREE
In stock yes
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Price 490.00 AED
In stock yes

Adapter for CO2 adjustment and calibration of dataloggers COMET

Adapter for CO2 adjustment and calibration of dataloggers COMET

code LP104
Price 890.00 AED
In stock 2 pcs
IoT ready Flat Rate SIM Card

IoT ready Flat Rate SIM Card

code LP105
Price 190.00 AED
In stock 170 pcs
