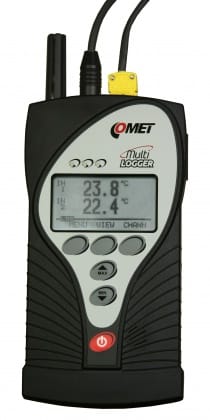

Multilogger - thermo hygro meter with 2 MiniDIN and 2 Thermocouple inputs

Universal datalogger with 4 inputs. Two inputs for temperature-humidity probes and two inputs for thermocouples K, J, S, B, T, N.
Multilogger can be installed permanently to Ethernet network or work as portable device.
Included is traceable calibration certificate in accordance with EN ISO/IEC17025.

The Multilogger is a battery operated datalogger capable of measuring and recording sensor and electrical values through its Inputs.

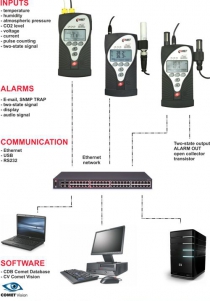

Data logger can be connected to Ethernet. Then measured values can be viewed on a web browser, as well as stored and downloaded for later analysis.

code

M1220
Warranty

3 years

On request

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +600 °C

Accuracy ±0.2 °C (-200 to +100 °C);
±0.2 % from reading from +100 to +600 °C

Resolution 0.1 °C

TEMPERATURE+HUMIDITY SENSOR - external probe T+RH DIGI

Measuring range according to the connected probe Digi/M

Accuracy according to the connected probe Digi/M

Resolution 0.1 °C

DEW POINT

Measuring range according to the connected probe Digi/M

Accuracy according to the connected probe Digi/M

Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple K, N

Measuring range -200 to +1300 °C

Accuracy ± 0,3 % from the measured value + 1,5 °C

Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple J

Measuring range -200 to +750 °C

Accuracy ± 0,3 % from the measured value + 1,5 °C

Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple S

Measuring range 0 to +1700 °C

Accuracy ± 0,3 % from the measured value + 1,5 °C

Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple B

Measuring range 100 to +1800 °C

Accuracy ± 0,3 % from the measured value + 1 °C in the range +300 to +1800 °C

Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple T

Measuring range -200 to +400 °C

Accuracy ± 0,3 % from the measured value + 1,5 °C

Resolution 0.1 °C

DC VOLTAGE

Measuring range -60 to +140 mV; -18 to +18 mV

Accuracy ±100 µV; ±20 µV

Resolution 0,1 µV

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C

Channels 4x external temperature probe

Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)

Recording interval 1s to 24 hours

Display and alarm refresh each 10 s

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Available temperature units degrees Celsius, degrees Fahrenheit

Communication interface Ethernet, USB, RS232

Ethernet communication protocols WWW, SNMPv1, XML, DATALINK

Alarm protocols E-Mail

Power AC adapter 230Vac/5Vdc (neccessary for Ethernet interface)

Battery life 3 - 4 weeks

Protection class IP20

Dimensions (without connectors) 178 x 95 x 37mm, without attached cables

Weight (including batteries) approx. 380 g

Warranty 3 years

Optional accessories and download

Temperature probe Pt1000TG8/M, MiniDin connector
